ACCESORIES
Complement our products with your original REMdevice accessories, and enjoy the advantages of our products.

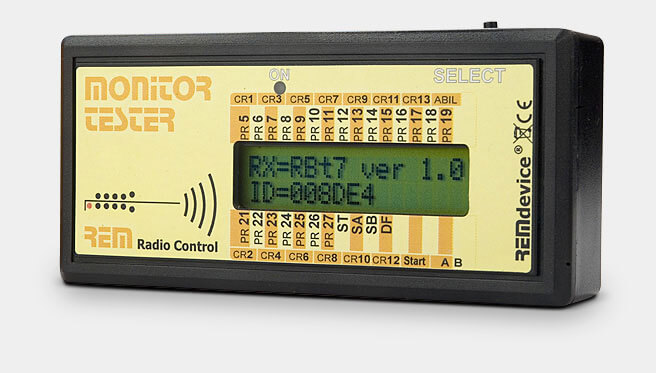

Monitor Tester
InstA self-powered display instrument connected to the receiver, intended to read out the operating data of the radio controller
Informatión
- Working frequency and channel used
- Signal level and disturbance
- Number of starts and working hours
- Number of upward and downward movements
- Relay function diagnostics
- Active commands
The product is supplied with a 9 V battery and a connection cable.

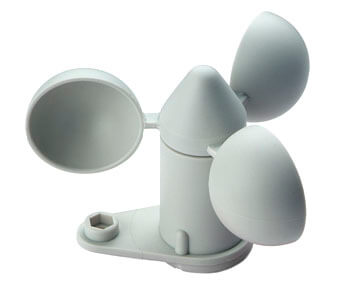

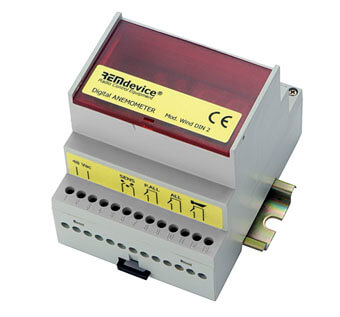

Anemómeters | WIND DIN 2
Digital omnidirectional wind speed anemometer designed for installation on lifting machines. Available in KMH and MPH versions, with wind speed indication in km/h or mph.
Information
- 3-cup sensor with vertical axis of rotation
- Stainless steel shaft and bearings
- Two alarm programming thresholds (factory settings: 50 km/h and 72 km/h, 31mph and 45mph in the mph version).
Technical specifications
- Measuring range: 0-99 km/h (0-99 mph)
- Display: 2-digit display
- Power supply: 48 Vac
- Modulbox housing for DIN rail mounting EN 50022 | Degree of protection: IP20 - Dimensions: 70 x 75 x 90 mm (LxHxD) - Weight: 350 g)
- Wind sensor: Dimensions: 120 x 80 mm (D×H) Weight: 140 g

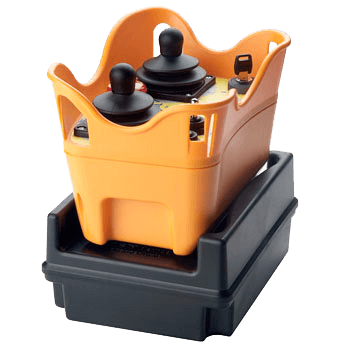

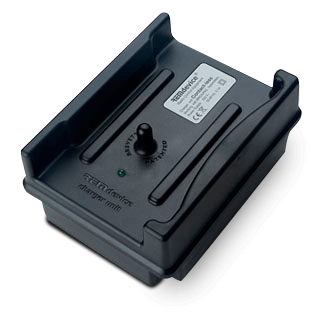

Contactless induction charger
The patented non-contact charging system completely eliminates electrical contacts, providing greater safety for operators and preventing failures due to dust and moisture.
It takes only 5 hours to fully charge the batteries of the transmitter units. A temporary charge of 20 minutes guarantees the operation of the radio remote control for the entire working day.
A microchip inside the contactless charger regulates the amount of energy supplied to achieve maximum battery efficiency.
The same charger can also work for Brick, Pail and Genesis transmitters.
Technical characteristics
- Automatically current controlled oscillator
- Supply voltage: 230 Vac or 12/24 Vdc
- Absorption: 0.1 A
- Enclosure protection rating IP 55 - material PA6 FV V0
- Dimensions: 135 × 85 × 190 mm (L×H×D)
- Weight: 790 g (with plug-in power cable)

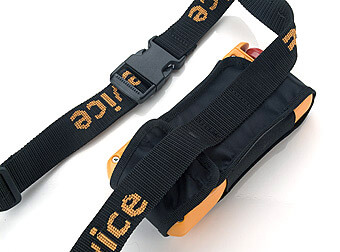

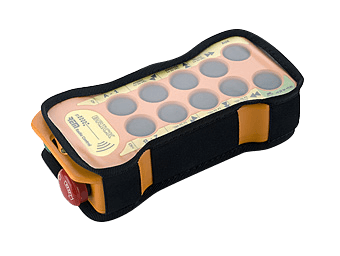

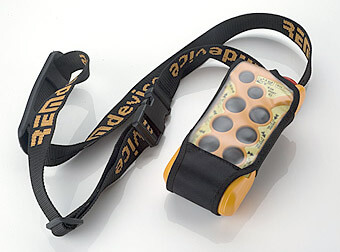

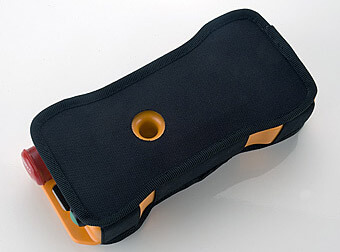

Protective covers
Available in versions with and without belt for Brick and T Series radio controls.
Antennas

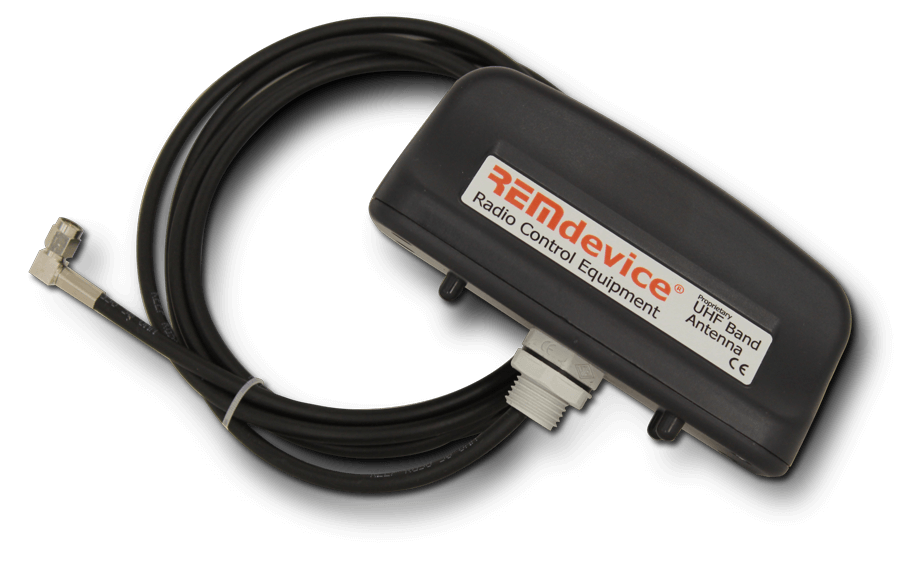

Antenna UHF
Universal antenna suitable for standard applications.
Operating frequency: 418 MHz, 433-434 MHz, 870 MHz, 915 MHz.
Supplied with a standard 1.5 m cable and a SMA or SMB connector (depending on model) for connection to the receiving unit.
Pre-arranged for fixing by means of a 16 mm diameter hole.
Technical characteristics
- Working frequency: 418 MHz, 433-434 MHz, 870 MHz, 915 MHz
- Gain: 5 dB
- Degree of protection housing: IP 65, material: PA6 FV
- Dimensions: 128 × 72 × 50 mm (L×H×D)
- Weight: 140 g

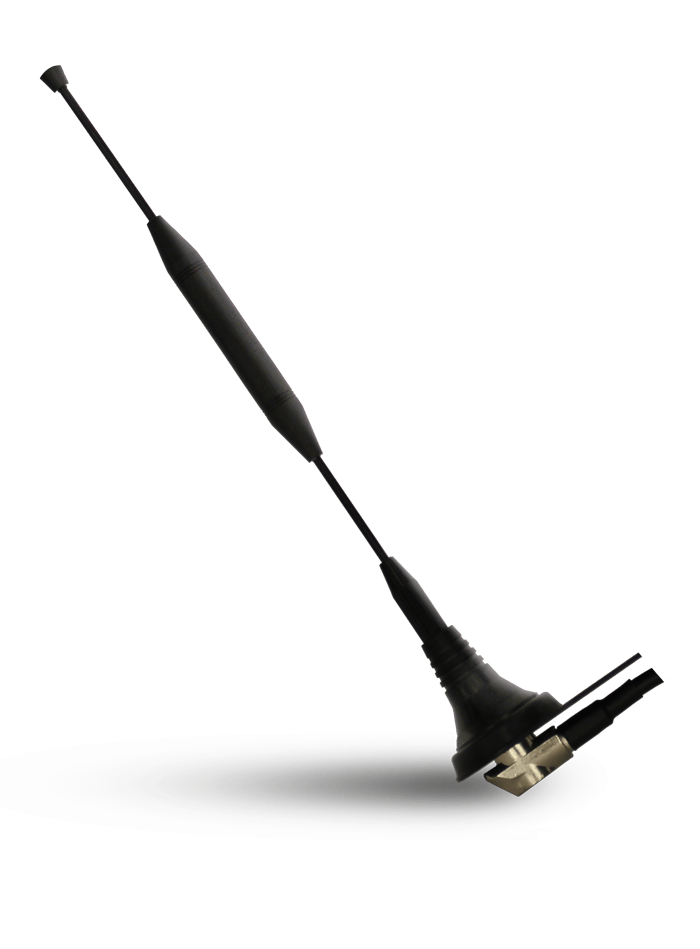

Antenna WHIP
Omini-directional antenna suitable for applications where radio coverage in all directions is required.
Operating frequency: 418 MHz, 433-434 MHz, 870 MHz, 915 MHz.
Supplied with a standard 3 m cable and SMA connector for connection to the receiver unit.
Predisposed for fixing by means of a 13 mm diameter hole.
Technical characteristics
- Working frequency: 418 MHz, 433-434 MHz, 870 MHz, 915 MHz
- Gain: 8 dB
- Dimensions: 35 × 450 × 35 mm (L×H×D)
- Weight: 310 g

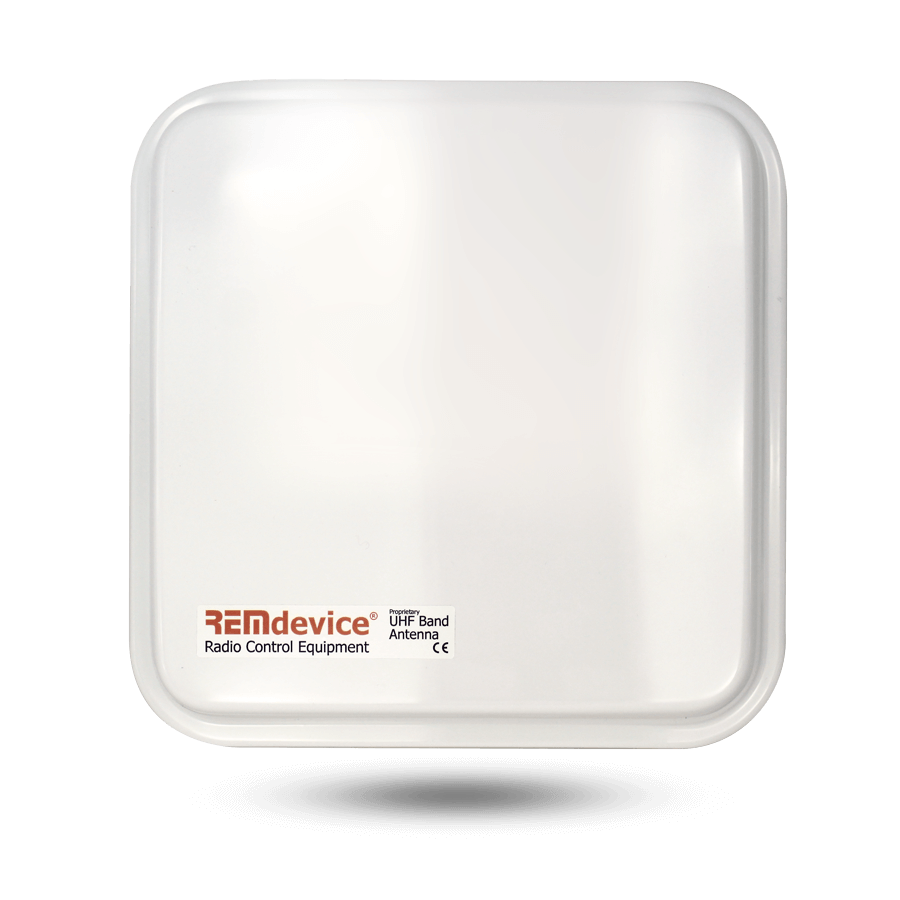

Antenna FLAT 870
Directional antenna suitable for special applications where more radio coverage in one direction is required.
Operating frequency: 870 MHz.
Supplied with a standard 3 m cable and SMA connector for connection to the receiver unit. Predisposed for mounting on a pole or equivalent support.
Technical characteristics
- Configuration: panel
- Operating frequency: 870 MHz
- Gain: 14 dB
- Dimensions: 240 × 25 × 240 mm (L×H×P)
- Weight: 800 g
